"專業緊固件服務商,一切為了緊固件！"-龍紅緊固件

分享到： QQ空間新浪微博騰訊微博微信更多

拉釘/SUS304/鋁/拉釘>沉頭拉釘系列>沉頭拉釘系列（SUS304/不銹鋼）>

搜產品,搜產品,搜產品-重要的事情說三遍

點擊咨詢

Long Hong®- 龍紅緊固件-封閉型鋁拉釘求購鋁拉釘2.3 12 鋁抽芯拉釘鋁拉釘批發鋁拉釘廠

副標題:龍紅緊固件-封閉型鋁拉釘求購鋁拉釘2.3 12 鋁抽芯拉釘鋁拉釘批發鋁拉釘廠

發布時間:2016-08-03 19:17:08 產品作者:LHGOOD 產品來源:BSO壓鉚件

關鍵詞:龍紅緊固件-封閉型鋁拉釘求購鋁拉釘2.3 12 鋁抽芯拉釘鋁拉釘批發鋁拉釘廠

產品TGS:產品編碼:LH-0002431 點擊數:

產品詳情 Product details
聯系我們 Contact us

龍紅緊固件-封閉型鋁拉釘求購鋁拉釘2.3 12 鋁抽芯拉釘鋁拉釘批發鋁拉釘廠

沉頭不銹鋼拉釘，深圳不銹鋼沉頭拉釘，非標沉頭拉釘。

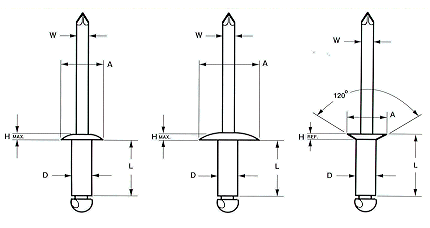

Rivet Diameter	G Grip Range	L Rivet Lengths Max	Aluminum Rivet Aluminum Mandrel IFI Grade 11					Aluminum Rivet Steel Manderl IFI Grade 19					Steel Rivet Steel Mandrel IFI Grade 30
Rivet Diameter	G Grip Range	L Rivet Lengths Max	Dome Head	Large Flange	Countsk. Head	S H E A R	T E N S I L E	Dome Head	Large Flange	Countsk. Head	S H E A R	T E N S I L E	Dome Head	Large Flange	Countsk. Head	S H E A R	T E N S I L E
3/32 (2.4mm)	.020-.125 0.8-3.2mm	.250 6.4mm	32AAP	-	32AAC	70	80	32ASP	-	32ASC	90	120	32SSP	-	32SSC	130	170
	.126-.250 3.3-6.4mm	.375 9.5mm	34AAP	-	34AAC			34ASP	-	34ASC			34SSP	-	34SSC
	.251-.375	.500	36AAP	-	36AAC			36ASP	-	36ASC			36SSP	-	36SSC
1/8 (3.2mm)	.020-.062 0.8-1.6mm	.212 5.4mm	41AAP	-	-	120	150	41ASP	-	41ASC	170	220	41SSP	-	41SSC	260	310
	.063-.125 1.7-3.2mm	.275 7.0mm	42AAP	42AAL	42AAC			42ASP	42ASL	42ASC			42SSP	42SSL	42SSC
	.126-.187 3.3-4.8mm	.337 8.6mm	43AAP	-	43AAC			43ASP	-	43ASC			43SSP	-	43SSC
	.188-.250 4.9-6.4mm	.400 10.2mm	44AAP	44AAL	44AAC			44ASP	44ASL	44ASC			44SSP	44SSL	44SSC
	.251-.312 6.5-7.9mm	.462 11.7mm	45AAP	-	45AAC			45ASP	-	45ASC			45SSP	-	45SSC
	.313-.375 8.0-9.5mm	.525 13.4mm	46AAP	46AAL	46AAC			46ASP	46ASL	46ASC			46SSP	46SSL	46SSC
	.376-.500 9.6-12.7mm	.650 16.5mm	48AAP	48AAL	48AAC			48ASP	48ASL	48ASC			48SSP	48SSL	48SSC
	.501-.625 12.8-15.9mm	.775 19.7mm	410AAP	-	410AAC			410ASP	-	410ASC			410SSP	410SSL	410SSC
5/32 (4.0mm)	.020-.125 1.6-3.2mm	.300 7.6mm	52AAP	-	-	190	230	52ASP	-	52ASC	260	350	52SSP	-	-	370	470
	.126-.187 3.3-4.8mm	.362 9.2mm	53AAP	-	-			53ASP	-	-			53SSP	-	-
	.188-.250 4.9-6.4mm	.425 10.8mm	54AAP	54AAL	54AAC			54ASP	54ASL	54ASC			54SSP	54SSL	54SSC
	.251-.375 6.5-9.5mm	.550 14.0mm	56AAP	56AAL	56AAC			56ASP	56ASL	56ASC			56SSP	56SSL	56SSC
	.376-.500 9.6-12.7mm	.675 17.2mm	58AAP	58AAL	58AAC			58ASP	58ASL	58ASC			58SSP	58SSL	58SSC
	.501-.625 12.7-17.1mm	.800 20.3mm	510AAP	-	510AAC			510ASP	-	510ASC			510SSP	-	510SSC
3/16 (4.8mm)	.020-.125 1.6-3.2mm	.325 8.3mm	62AAP	-	-	260	320	62ASP	-	-	380	500	62SSP	-	-	540	680
	.125-.250 3.2-6.4mm	.450 11.5mm	64AAP	64AAL	64AAC			64ASP	64ASL	64ASC			64SSP	64SSL	64SSC
	.251-.375 6.5-9.5mm	.575 14.6mm	66AAP	66AAL	66AAC			66ASP	66ASL	66ASC			66SSP	66SSL	66SSC
	.376-.500 9.6-12.7mm	.700 17.8mm	68AAP	68AAL	68AAC			68ASP	68ASL	68ASC			68SSP	68SSL	68SSC
	.501-.625 12.8-15.9mm	.825 21.0mm	610AAP	610AAL	610AAC			610ASP	610ASL	610ASC			610SSP	610SSL	610SSC
	.626-.750 16.0-19.1mm	.950 24.2mm	612AAP	612AAL	612AAC			612ASP	612ASL	612ASC			612SSP	612SSL	612SSC
	.751-.875 19.1-22.2mm	1.075 27.3mm	614AAP	614AAL	614AAC			614ASP	614ASL	614ASC			614SSP	614SSL	614SSC
	.876-1.000 22.3-25.4mm	1.200 30.5mm	616AAP	-	616AAC			616ASP	-	616ASC			616SSP	-	616SSC
1/4 (6.4mm)	.020-.125 1.6-3.2mm	.375	82AAP	-	-	460	560	82ASP	-	-	700	920	82SSP	-	-	1000	1240
	.126-.250 3.3-6.4mm	.500 12.7mm	84AAP	84AAL	84AAC			84ASP	84ASL	84ASC			84SSP	84SSL	84SSC
	.251-.375 6.5-9.5mm	.625 15.9mm	86AAP	86AAL	86AAC			86ASP	86ASL	86ASC			86SSP	86SSL	86SSC
	.376-.500 9.6-12.7mm	.750 19.1mm	88AAP	88AAL	88AAC			88ASP	88ASL	88ASC			88SSP	88SSL	88SSC
	.501-.625 12.8-15.9mm	.875 21.0mm	810AAP	810AAL	810AAC			810ASP	810ASL	810ASC			810SSP	810SSL	810SSC
	.626-.750 16.0-19.1mm	1.000 25.4mm	812AAP	812AAL	812AAC			812ASP	812ASL	812ASC			812SSP	812SSL	812SSC
	.751-.875 19.1-22.2mm	1.125 28.6mm	814AAP	814AAL	814AAC			814ASP	814ASL	814ASC			814SSP	814SSL	814SSC
	.876-1.000 22.3-25.4mm	1.250 31.8mm	816AAP	816AAL	816AAC			816ASP	816ASL	816ASC			816SSP	816SSL	816SSC

Rivet Diameter	G Grip Range	L Rivet Lengths Max	Stainless Rivet Stainless Mandrel IFI Grade 51					Stainless Rivet Steel Mandrel IFI Grade 50
Rivet Diameter	G Grip Range	L Rivet Lengths Max	Dome Head	Large Flange	Countsk. Head	S H E A R	T E N S I L E	Dome Head	Large Flange	Countsk. Head	S H E A R	T E N S I L E
3/32 (2.4mm)	.020-.125 .8-3.2mm	.250 6.4mm	32FFP	-	32FFC	230	280	32FSP	-	32FSC	230	280
	.126-.250 3.3-6.4mm	.375 9.5mm	34FFP	-	34FFC			34FSP	-	34FSC
	.251-.375	.500	-	-	-			-	-	-
1/8 (3.2mm)	.020-.062 .8-1.6mm	.212 5.4mm	41FFP	-	-	420	530	41FSP	-	-	420	530
	.063-.125 1.7-3.2mm	.275 7.0mm	42FFP	42FFL	42FFC			42FSP	42FSL	42FSC
	.126-.187 3.3-4.8mm	.337 8.6mm	43FFP	-	43FFC			43FSP	-	43FSC
	.188-.250 4.9-6.4mm	.400 10.2mm	44FFP	44FFL	44FFC			44FSP	44FSL	44FSC
	.251-.312 6.5-7.9mm	.462 11.7mm	45FFP	-	45FFC			45FSP	-	45FSC
	.313-.375 8.0-9.5mm	.525 13.4mm	46FFP	46FFL	46FFC			46FSP	46FSL	46FSC
	.376-.500 9.6-12.7mm	.650 16.5mm	48FFP	-	-			48FSP	-	-
	.501-.625 12.8-15.9mm	.775 19.7mm	410FFP	-	-			410FSP	-	-
5/32 (4.0mm)	.020-.125 1.6-3.2mm	.300 7.6mm	52FFP	-	-	650	820	-	-	-	650	820
	.126-.187 3.3-4.8mm	.362 9.2mm	-	-	-			-	-	-
	.188-.250 4.9-6.4mm	.425 10.8mm	54FFP	54FFL	54FFC			54FSP	54FSL	54FSC
	.251-.375 6.5-9.5mm	.550 14.0mm	56FFP	56FFL	56FFC			56FSP	56FSL	56FSC
	.376-.500 9.6-12.7mm	.675 17.2mm	-	-	-			-	-	-
	.501-.625 12.7-17.1mm	.800 20.3mm	-	-	-			-	-	-
3/16 (4.8mm)	.020-.125 1.6-3.2mm	.325 8.3mm	62FFP	-	-	950	1200	62FSP	-	-	950	1200
	.125-.250 3.3-6.4mm	.450 11.5mm	64FFP	64FFL	64FFC			64FSP	64FSL	64FSC
	.251-.375 6.5-9.5mm	.575 14.6mm	66FFP	66FFL	66FFC			66FSP	66FSL	66FSC
	.376-.500 9.6-12.7mm	.700 17.8mm	68FFP	68FFL	68FFC			68FSP	68FSL	68FSC
	.501-.625 12.8-15.9mm	.825 21.0mm	-	-	-			-	-	-
	.626-.750 16.0-19.1mm	.950 24.2mm	-	-	-			-	-	-
	.751-.875 19.1-22.2mm	1.075 27.3mm	-	-	-			-	-	-
	.876-1.000 22.3-25.4mm	1.200 30.5mm	-	-	-			-	-	-
1/4 (6.4mm)	.020-.125 1.6-3.2mm	.375 9.4mm	82FFP	-	-	1700	2100	82FSP	-	-	1700	2100
	.126-.250 3.2-6.4mm	.500 12.7mm	84FFP	-	84FFC			84FSP	-	84FSC
	.251-.375 6.5-9.5mm	.625 15.9mm	86FFP	-	86FFC			86FSP	-	86FSC
	.376-.500 9.6-12.7mm	.750 19.1mm	88FFP	-	88FFC			88FSP	-	88FSC
	.501-.625 12.8-15.9mm	.875 21.0mm	810FFP	-	810FFC			810FSP	-	810FSC
	.626-.750 16.0-19.1mm	1.000 25.4mm	-	-	-			-	-	-
	.751-.875 19.1-22.2mm	1.125 28.6mm	-	-	-			-	-	-
	.876-1.000 22.3-25.4mm	1.250 31.8mm	-	-	-			-	-	-

Rivet Diameter	G Grip Range	L Rivet Lengths Max	Monel Rivet Steel Mandrel IFI Grade 40					Copper Rivet Steel Mandrel IFI Grade 20
Rivet Diameter	G Grip Range	L Rivet Lengths Max	Dome Head	Large Flange	Countsk. Head	S H E A R	T E N S I L E	Dome Head	Large Flange	Countsk. Head	S H E A R	T E N S I L E
3/32 (2.4mm)	.020-.125 .8-3.2mm	.250 6.4mm	32MSP	-	32MSC	200	250	-	-	-
	.126-.250 3.3-6.4mm	.375 9.5mm	34MSP	-	34MSC			-	-	-
	.251-.375	.500	36MSP	-	-			-	-	-
1/8 (3.2mm)	.020-.062 .8-1.6mm	.212 5.4mm	41MSP	-	-	350	450	41CSP	-	-	215	300
	.063-.125 1.7-3.2mm	.275 7.0mm	42MSP	42MSL	42MSC			42CSP	42CSL	42CSC
	.126-.187 3.3-4.8mm	.337 8.6mm	43MSP	-	43MSC			43CSP	-	43CSC
	.188-.250 4.9-6.4mm	400 10.2mm	44MSP	44MSL	44MSC			44CSP	44CSL	44CSC
	.251-.312 6.5-7.9mm	.462 11.7mm	45MSP	-	45MSC			45CSP	-	45CSC
	.313-.375 8.0-9.5mm	.525 13.4mm	46MSP	46MSL	46MSC			46CSP	46CSL	46CSC
	.376-.500 9.6-12.7mm	.650 16.5mm	48MSP	-	48MSC			48CSP	48CSL	48CSC
	.501-.625 12.8-15.9mm	.775 19.7mm	-	-	-			410CSP	-	410CSC
5/32 (4.0mm)	.020-.125 1.6-3.2mm	.300 7.6mm	52MSP	-	-	550	700	-	-	-
	.126-.187 3.3-4.8mm	.362 9.2mm	-	-	-			-	-	-
	.188-.250 4.9-6.4mm	.425 10.8mm	54MSP	54MSL	54MSC			-	-	-
	.251-.375 6.5-9.5mm	.550 14.0mm	56MSP	56MSL	56MSC			-	-	-
	.376-.500 9.6-12.7mm	.675 17.2mm	58MSP	58MSL	58MSC			-	-	-
	.501-.625 12.7-17.1mm	.800 20.3mm	-	-	-	800	1000	-	-	-
3/16 (4.8mm)	.020-.125 1.6-3.2mm	.325 8.3mm	62MSP	-	-			-	-	-
	.125-.250 3.3-6.4mm	.450 11.5mm	64MSP	64MSL	64MSC			-	-	-
	.251-.375 6.5-9.5mm	.575 14.6mm	66MSP	66MSL	66MSC			-	-	-
	.376-.500 9.6-12.7mm	.700 17.8mm	68MSP	68MSL	68MSC			-	-	-
	.501-.625 12.8-15.9mm	.825 21.0mm	610MSP	610MSL	610MSC			-	-	-
	.626-.750 16.0-19.1mm	.950 24.2mm	-	-	-			-	-	-
	.751-.875 19.1-22.2mm	1.075 27.3mm	-	-	-			-	-	-
	.876-1.000 22.3-25.4mm	1.200 30.5mm	-	-	-			-	-	-
1/4 (6.4mm)	.020-.125 1.6-3.2mm	375 9.4mm	82MSP	-	-	1400	1850	-	-	-
	.126-.250 3.2-6.4mm	.500 12.7mm	84MSP	-	84MSC			-	-	-
	.251-.375 6.5-9.5mm	.625 15.9mm	86MSP	-	86MSC			-	-	-
	.376-.500 9.6-12.7mm	.750 19.1mm	88MSP	-	88MSC			-	-	-
	.501-.625 12.8-15.9mm	.875 21.0mm	810MSP	-	810MSC			-	-	-
	.626-.750 16.0-19.1mm	1.000 25.4mm	-	-	-			-	-	-
	.751-.875 19.1-22.2mm	1.125 28.6mm	-	-	-			-	-	-
	.876-1.000 22.3-25.4mm	1.250 31.8mm	-	-	-			-	-	-
