Long Hong®- 吊環DIN 580 黑鋅吊環螺母,不銹鋼吊環螺母,非標吊環螺栓
副標題:不銹鋼吊環螺母，非標吊環螺栓
發布時間:2015-11-20 16:42:08 產品作者:LHGOOD 產品來源:BSO壓鉚件
關鍵詞:DIN 582 吊環螺母,不銹鋼吊環螺母,非標吊環螺栓
產品TGS:產品編碼:LH-000240 點擊數:
- 產品詳情 Product details
- 聯系我們 Contact us

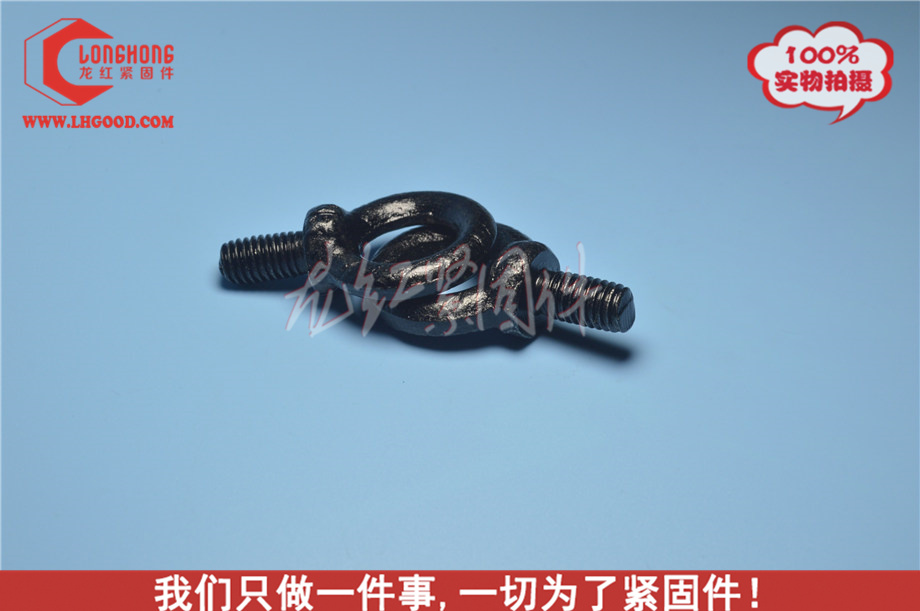

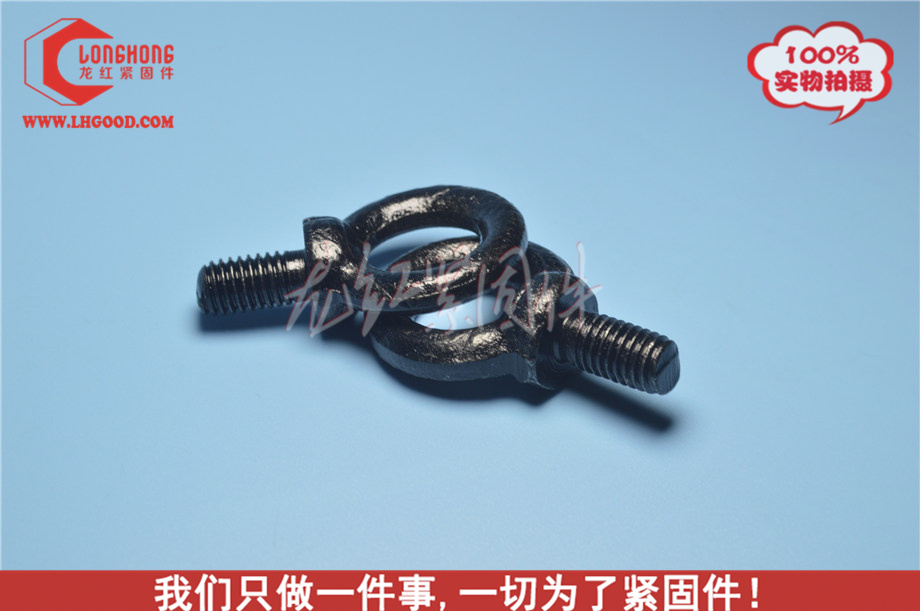

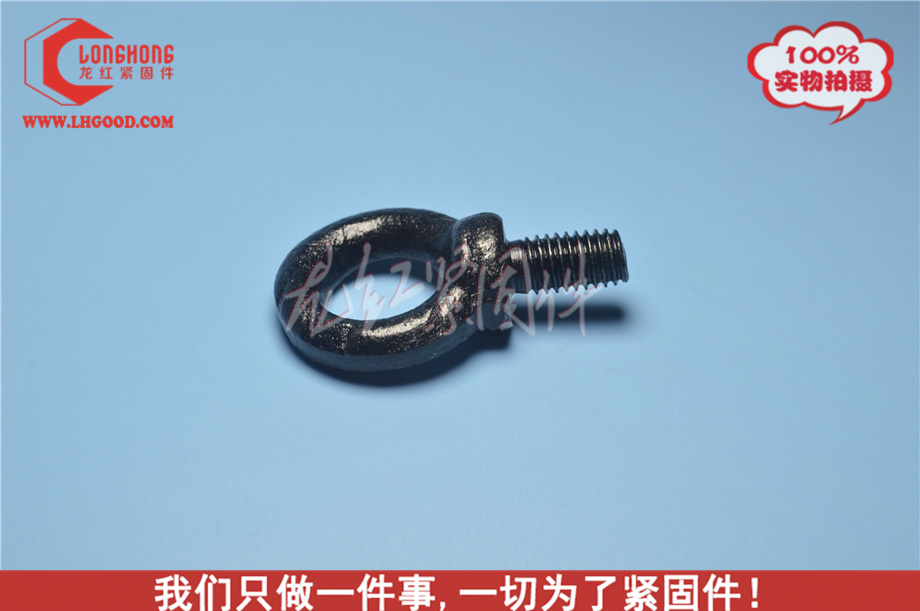

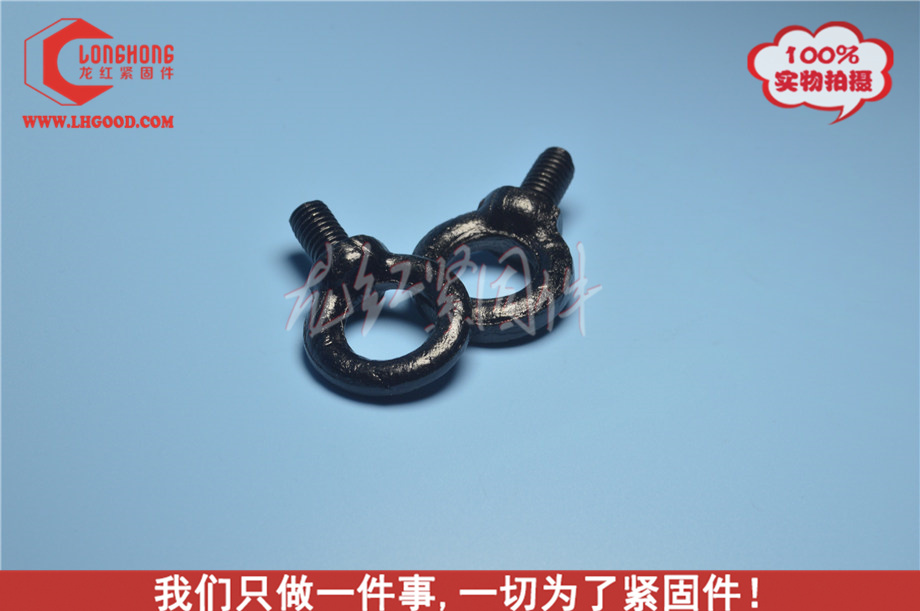

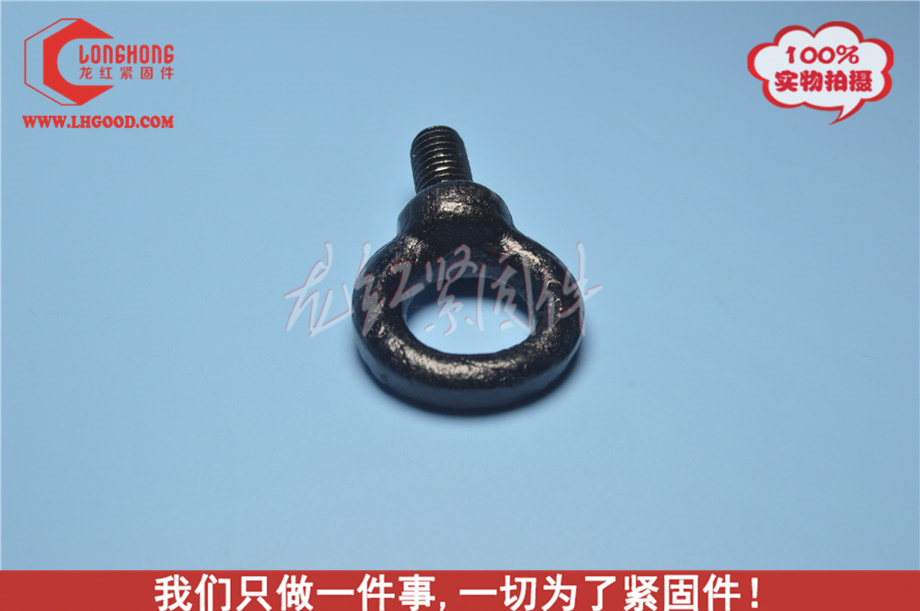

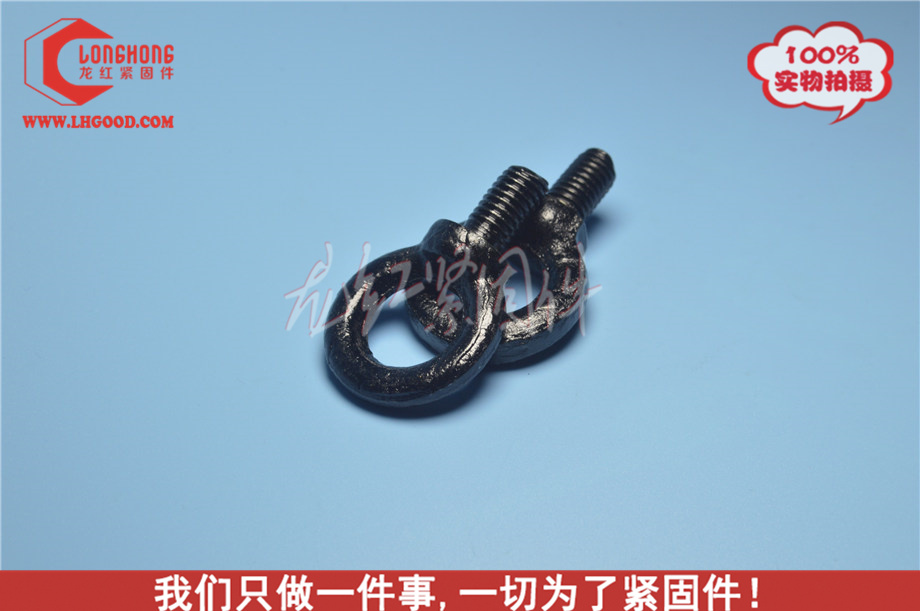

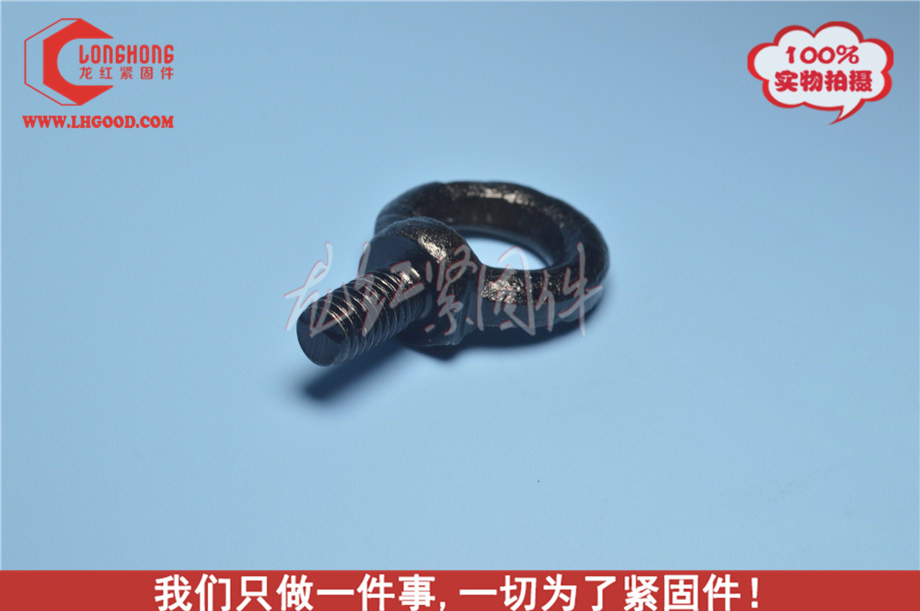

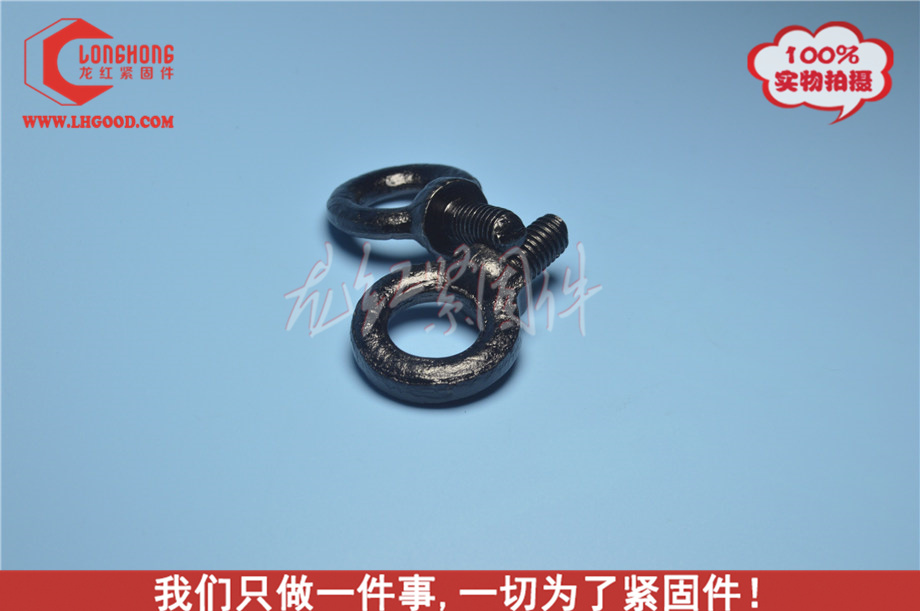

DIN 580 吊環螺母，不銹鋼吊環螺母，非標吊環螺栓
MATERIA?:
Stal kl. C15E ocynk galw. bia?y
Stal kl. C15E ocynk galw. bia?y
Stal nierdzewna A2
Stal kwasoodporna A4
| d1 | h | b | d2 | d3 | d4 | k | ||
|---|---|---|---|---|---|---|---|---|
| M6 | 27,5 | 12 | 27 | 19 | 14 | 6,5 | 70 | 50 |
| M8 | 36 | 13 | 36 | 20 | 20 | 8 | 140 | 95 |
| M10 | 45 | 17 | 45 | 25 | 25 | 10 | 230 | 170 |
| M12 | 53 | 20,5 | 54 | 30 | 30 | 12 | 340 | 240 |
| M14 | 62 | 27 | 63 | 35 | 35 | 14 | 490 | 340 |
| M16 | 62 | 27 | 63 | 35 | 35 | 14 | 700 | 600 |
| M20 | 71 | 30 | 72 | 40 | 40 | 16 | 1200 | 830 |
| M22 | 90 | 36 | 90 | 50 | 50 | 20 | 1500 | 1050 |
| M24 | 90 | 36 | 90 | 60 | 50 | 20 | 1800 | 1270 |
| M27 | 109 | 45 | 108 | 65 | 60 | 24 | 2500 | 1650 |
| M30 | 109 | 45 | 108 | 65 | 60 | 24 | 3600 | 2600 |
| M33 | 128 | 54 | 126 | 75 | 70 | 28 | 4300 | 3200 |
| M36 | 128 | 54 | 126 | 75 | 70 | 28 | 5100 | 3700 |
| M42 | 147 | 63 | 144 | 85 | 80 | 32 | 7000 | 5000 |
| M45 | 168 | 68 | 166 | 100 | 90 | 38 | 8000 | 5500 |
| M48 | 168 | 68 | 166 | 100 | 90 | 38 | 8600 | 6100 |
| M52 | 187 | 78 | 184 | 110 | 100 | 42 | 9900 | 7300 |
| M56 | 187 | 78 | 184 | 110 | 100 | 42 | 11500 | 8300 |
| M64 | 208 | 90 | 206 | 120 | 110 | 48 | 16000 | 11000 |
| M72 | 280 | 100 | 260 | 150 | 140 | 60 | 21000 | 15000 |
| M80 | 298 | 112 | 296 | 170 | 160 | 68 | 28000 | 20000 |
| M100 | 330 | 130 | 330 | 190 | 180 | 75 | 38000 | 27000 |

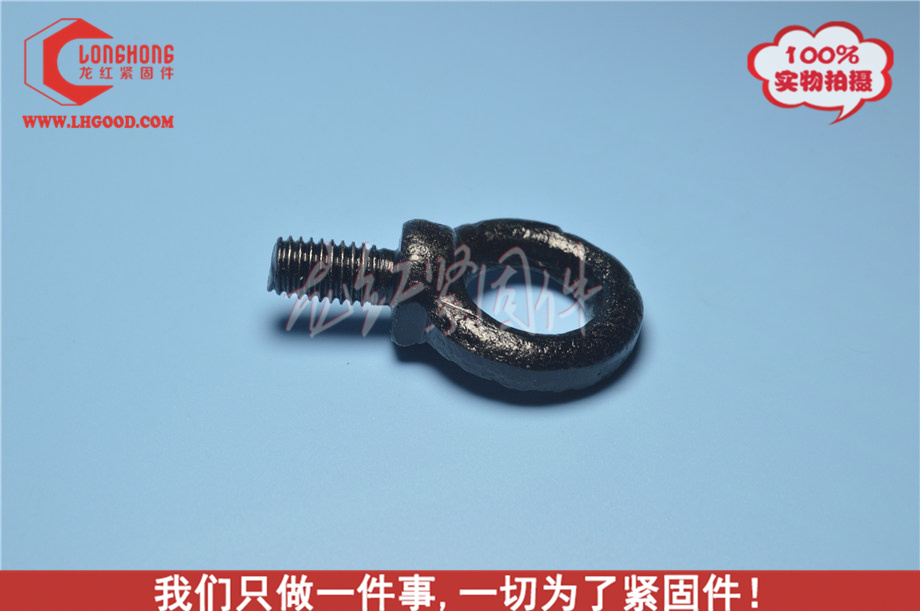

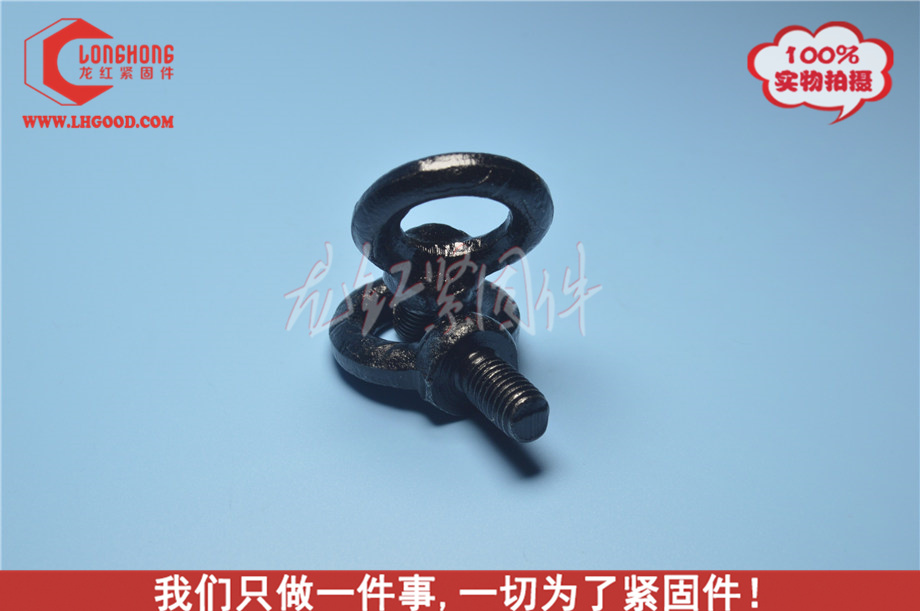

DIN 580 Lifting Eye Bolt
|
Lifting Eye Bolt C15 Material
B010 - Bare Steel |
DIN 580 |
 |
