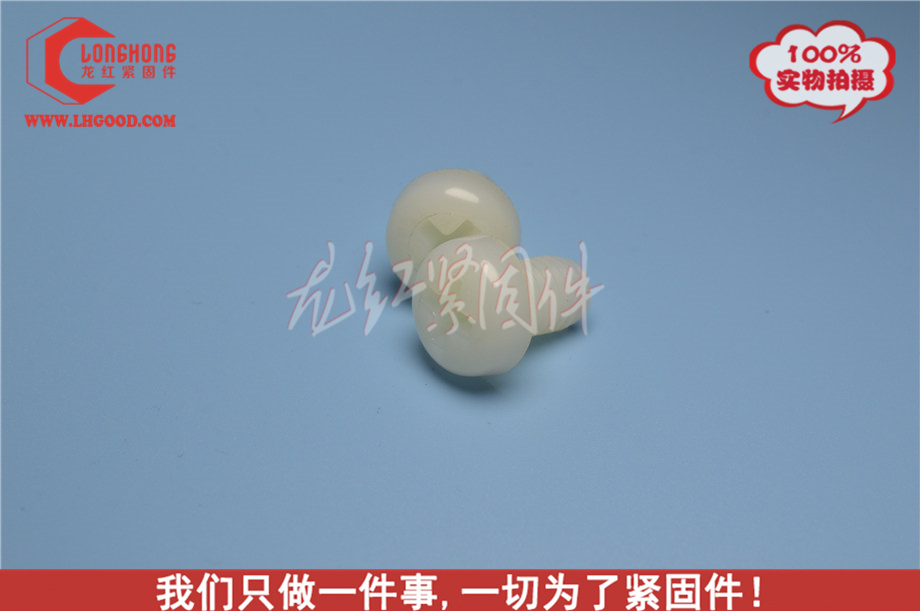

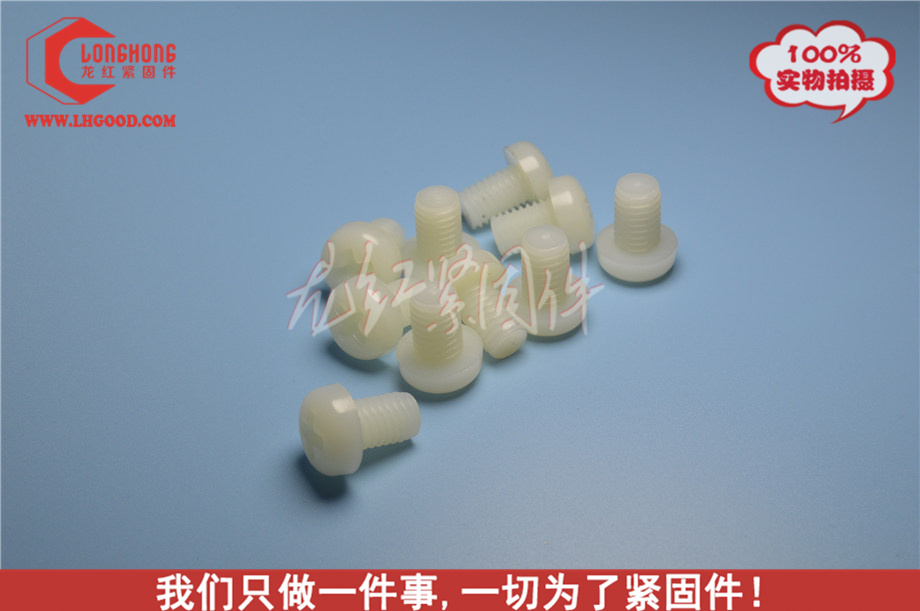

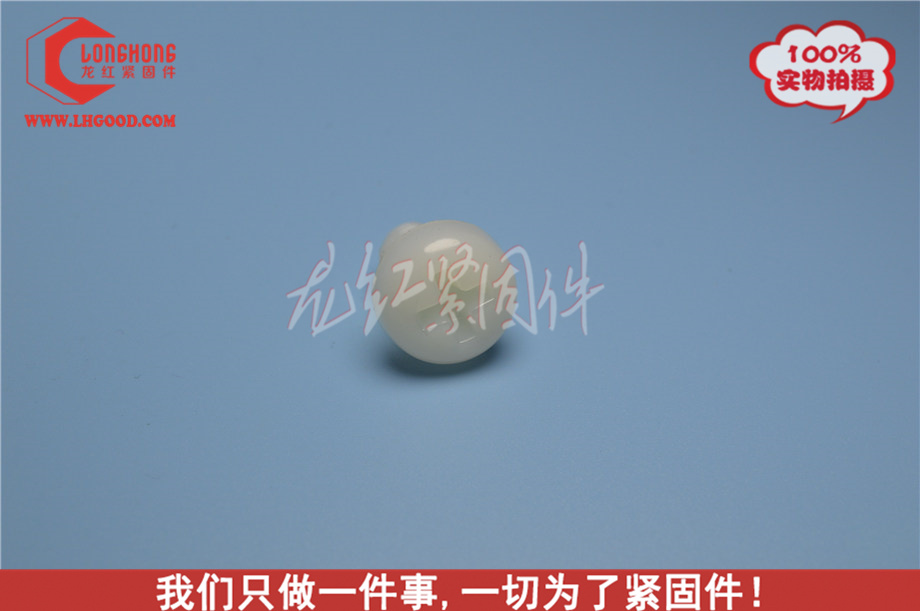

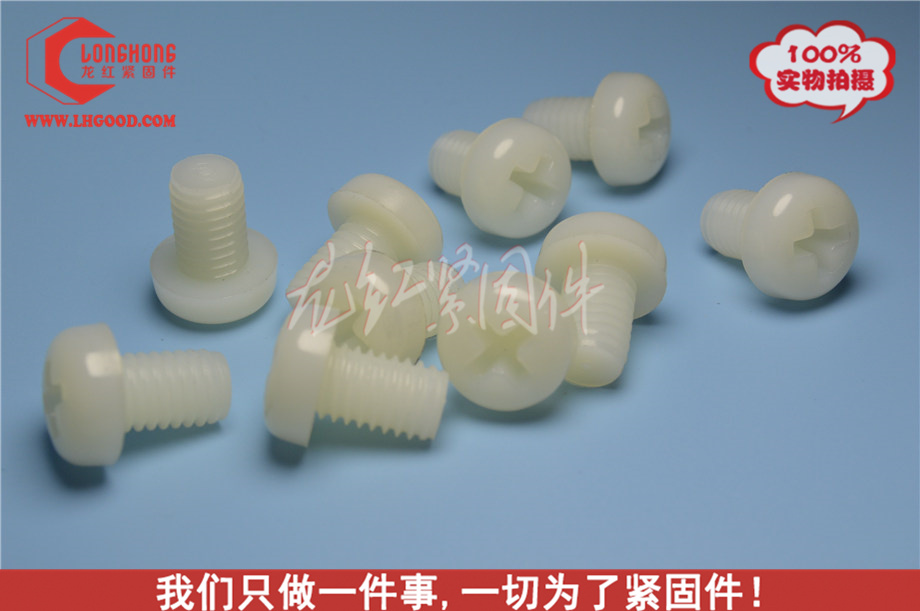

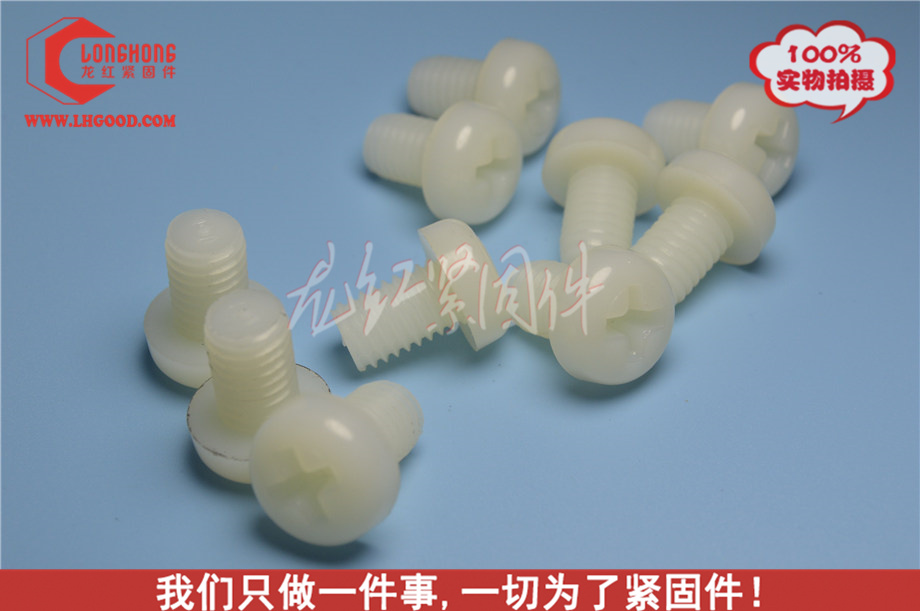

Long Hong®- 尼龍66,塑膠盤頭螺絲,盤頭內六角螺栓ISO7380
副標題:尼龍66,塑膠盤頭螺絲,盤頭內六角螺栓ISO7380
發布時間:2015-11-19 09:42:49 產品作者:LHGOOD 產品來源:不銹鋼BSO
關鍵詞:尼龍66,塑膠盤頭螺絲,盤頭內六角螺栓ISO7380
產品TGS:產品編碼:LH-000295 點擊數:
- 產品詳情 Product details
- 聯系我們 Contact us
ISO 7380，不銹鋼盤頭內六角螺栓ISO7380
MATERIA?:
Stal kl. 10.9 bez pow?oki
Stal kl. 10.9 ocynk galw. bia?y
Stal nierdzewna A2
Stal kwasoodporna A4
|
Button Head 圓頭內六角螺栓（不銹鋼） 10.9 Grade LHGOOD - 7380-10.9 Bare Steel |
ISO 7380 |
 |
| Diameter | M3 | M4 | M5 | M6 | M8 | M10 | M12 | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| r1 | 3 | 4.1 | 5.2 | 5.6 | 7.5 | 10 | 11 | |||||||
| t min. | 1.04 | 1.3 | 1.56 | 2.08 | 2.6 | 3.12 | 4.16 | |||||||
| s | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | |||||||
| k max. | 1.65 | 2.2 | 2.75 | 3.3 | 4.4 | 5.5 | 6.6 | |||||||
| d1 | 5.5 | 7.5 | 9.5 | 10.5 | 14 | 18 | 21 | |||||||
| R.S. Torque (NM) | 1.15 | 2.7 | 5.4 | 9.15 | 22 | 44 | 77 | |||||||
| Length (mm) | Bare | Zinc | Bare | Zinc | Bare | Zinc | Bare | Zinc | Bare | Zinc | Bare | Zinc | Bare | Zinc |
| S050 | S053 | S050 | S053 | S050 | S053 | S050 | S053 | S050 | S053 | S050 | S053 | S050 | S053 | |
| 4 | 100 | |||||||||||||
| 5 | 100 | 100 | ||||||||||||
| 6 | 100 | 100 | 100 | 100 | 100 | |||||||||
| 8 | 100 | 100 | 100 | 100 | 100 | 100 | ||||||||
| 10 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | ||||||
| 12 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |||||
| 14 | 100 | 100 | ||||||||||||
| 16 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |||
| 18 | 100 | 100 | 100 | |||||||||||
| 20 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |||
| 25 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | ||||
| 30 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | ||||||
| 35 | 100 | 100 | 100 | 100 | 100 | 100 | ||||||||
| 40 | 100 | 100 | 100 | 100 | 100 | 100 | ||||||||
| 45 | 100 | 100 | 100 | 100 | ||||||||||
| 50 | 100 | 100 | 100 | 100 | ||||||||||
| 55 | 100 | |||||||||||||
| 60 | 100 | 100 | 100 | |||||||||||
R.S. Torque = Recommended Seating Torque
| Property Class | 10.9 |
|---|---|
| Hardness (HRC) | 32-39 |
| Tensile Strength (Mpa) | 835 min. |
