Long Hong®- 壓鉚螺釘Flush-Head - FH
副標題:壓鉚螺釘Flush-Head
發布時間:2015-11-20 14:03:31 產品作者:LHGOOD 產品來源:不銹鋼BSO
關鍵詞:LH-FH,LH-FHS,LH-FHA, LH-FH4
產品TGS:產品編碼:LH-000217 點擊數:
- 產品詳情 Product details
- 聯系我們 Contact us

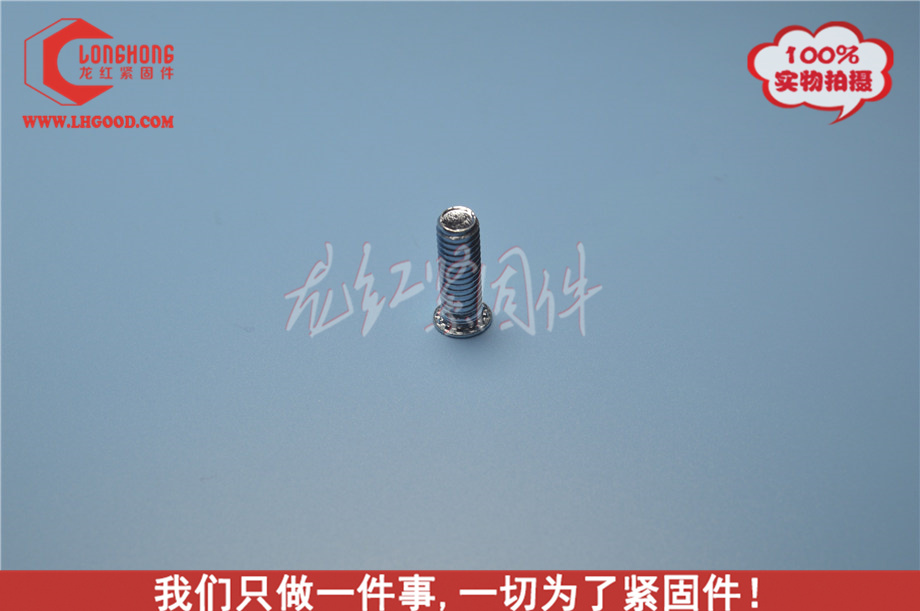

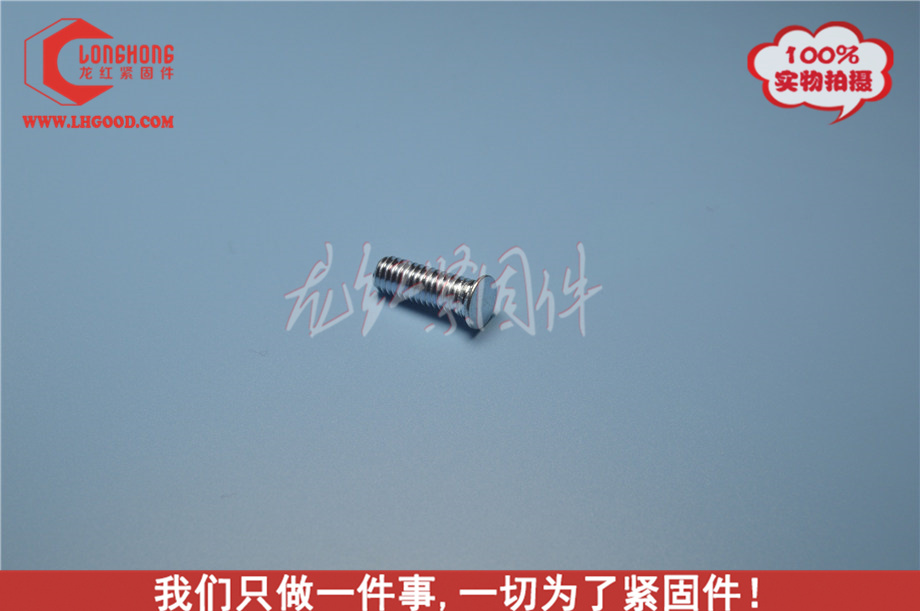

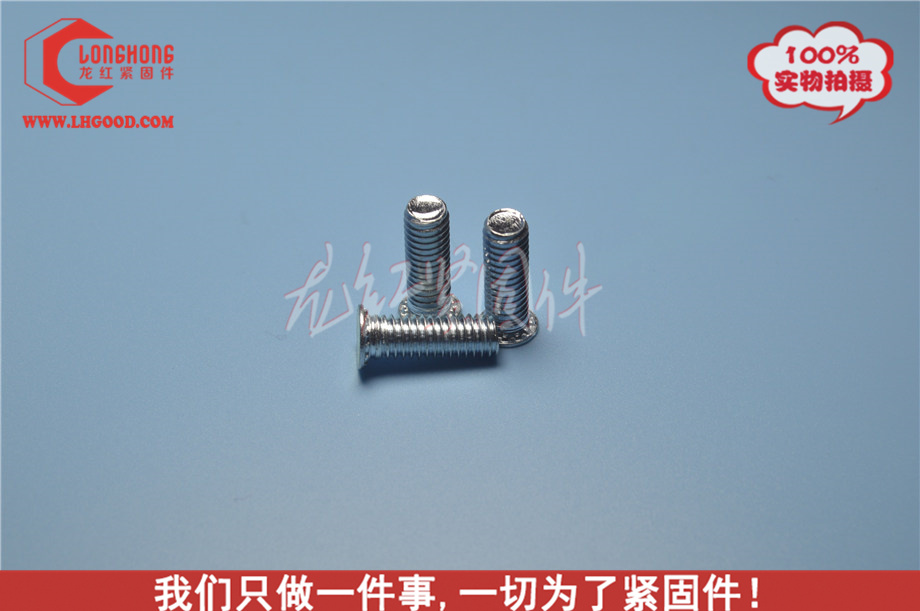

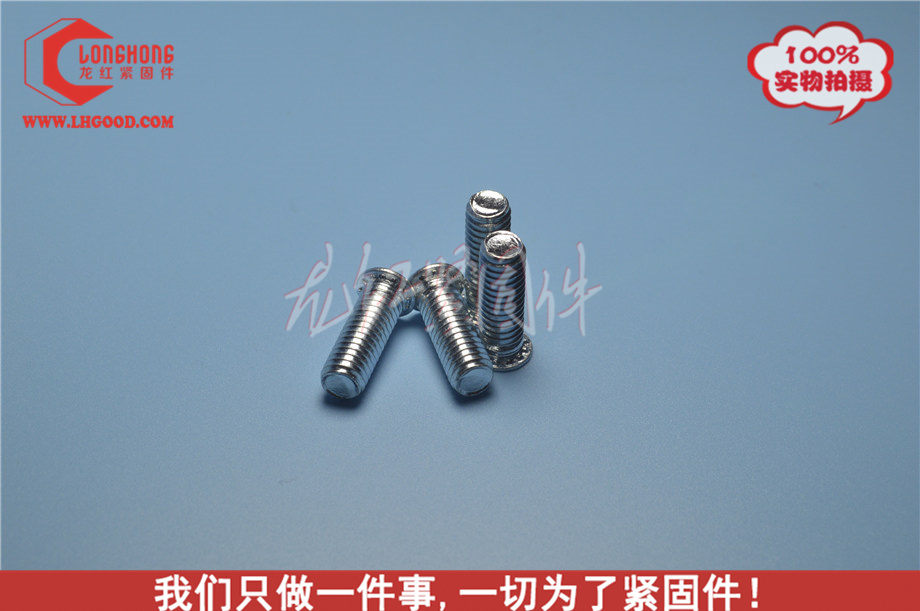

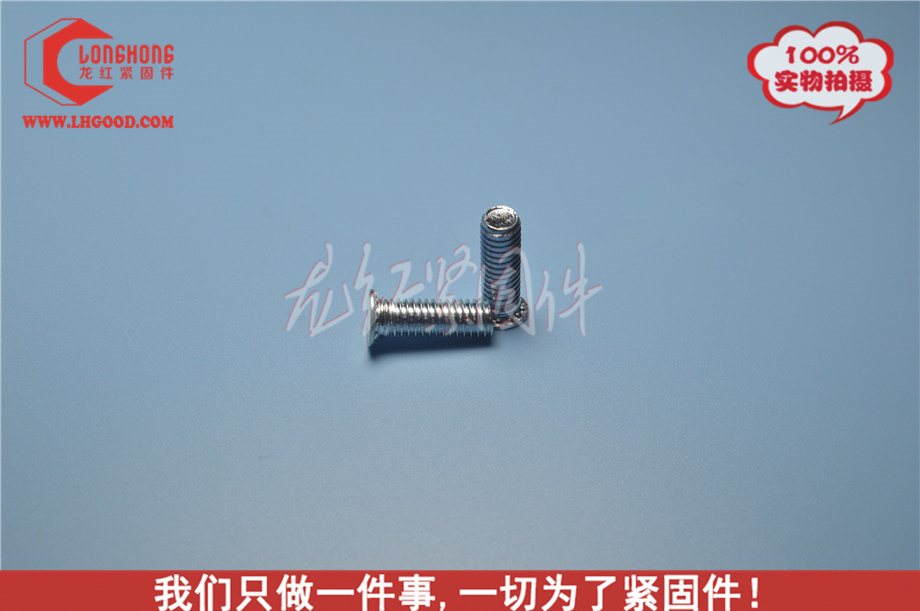

LH-FH,LH-FHS,LH-FHA, LH-FH4
Materia?: ST, A2, AL, A2-TW
r - ?rednica otworu
s - min grubo?? blachy
m - min odst?p od ?rodka otworu do kraw?dzi
| Gwint | STAL OCYNKOWANA |
STAL NIERDZEWNA | D max +/-0,4 |
H max | s min |
r +0,08 -0,00 |
m | |
|---|---|---|---|---|---|---|---|---|
| seria 300 | seria 400 | |||||||
| M2 | LH-FH M2-L | LH-FHS M2-L | LH-FH4 M2-L | 3,5 | 1,95 | 1,0 | 2,5 | 5,2 |
| M2,5 | LH-FH M2,5-L | LH-FHS M2,5-L | LH-FH4 M2,5-L | 4,1 | 1,95 | 1,0 | 2,5 | 5,4 |
| M3 | LH-FH M3-L | LH-FHS M3-L | LH-FH4 M3-L | 4,6 | 2,10 | 1,0 | 3,0 | 5,6 |
| M3,5 | LH-FH M3,5-L | LH-FHS M3,5-L | LH-FH4 M3,5-L | 5,3 | 2,25 | 1,0 | 3,5 | 6,4 |
| M4 | LH-FH M4-L | LH-FHS M4-L | LH-FH4 M4-L | 5,9 | 2,40 | 1,0 | 4,0 | 7,2 |
| M5 | LH-FH M5-L | LH-FHS M5-L | LH-FH4 M5-L | 6,5 | 2,70 | 1,0 | 5,0 | 7,2 |
| M6 | LH-FH M6-L | LH-FHS M6-L | LH-FH4 M6-L | 8,2 | 3,00 | 1,6 | 6,0 | 7,9 |
| M8 | LH-FH M8-L | LH-FHS M8-L | LH-FH4 M8-L | 9,6 | 3,70 | 2,5 | 8,0 | 9,6 |
| Gwint | Dost?pne d?ugo?ci - (L) +/- 0,4 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M2 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | - | - | - | - | - | - |
| M2,5 | 6 | 8 | 10 | 12 | 15 | 18 | 20 | - | - | - | - | - | - | - |
| M3 | 6 | 8 | 10 | 12 | 15 | 18 | 20 | 22 | 25 | 28 | 30 | 35 | - | - |
| M3,5 | 6 | 8 | 10 | 12 | 15 | 18 | 20 | 22 | 25 | 28 | 30 | 35 | - | - |
| M4 | 6 | 8 | 10 | 12 | 15 | 18 | 20 | 22 | 25 | 28 | 30 | 35 | 38 | 40 |
| M5 | 6 | 8 | 10 | 12 | 15 | 18 | 20 | 22 | 25 | 28 | 30 | 35 | 38 | 40 |
| M6 | - | 8 | 10 | 12 | 15 | 18 | 20 | 22 | 25 | 28 | 30 | 35 | 38 | 40 |
| M8 | - | - | 10 | 12 | 15 | 18 | 20 | 22 | 25 | 28 | 30 | 35 | 38 | 40 |
Istnieje mo?liwo?? wyprodukowania ko?ków o d?ugo?ci (L) 45-60 mm. Ko?ki aluminiowe pod zamówienie.
| Symbol | materia? | max twardo?? blachy |
|---|---|---|
| LH-FH | Stal ocynkowana | HRB 80 |
| LH-FHS | Stal nierdzewna seria 300 | HRB 70 |
| LH-FH4 | Stal nierdzewna seria 400 | HRB 92 |
| LH-FHA | Aluminium | HRB 50 |
