Long Hong®- 三分之一中間槽槽銷 ISO8743/GB13829.3-2004/DIN1475-1/DIN1475
副標題: 三分之一中間槽槽銷 ISO8743/GB13829.3-2004/DIN1475-1/DIN1475
發布時間:2015-11-22 15:52:16 產品作者:LHGOOD 產品來源:BSO壓鉚件
關鍵詞: 三分之一中間槽槽銷 ISO8743/GB13829.3-2004/DIN1475-1/DIN1475
產品TGS:產品編碼:LH-000333 點擊數:
- 產品詳情 Product details
- 聯系我們 Contact us

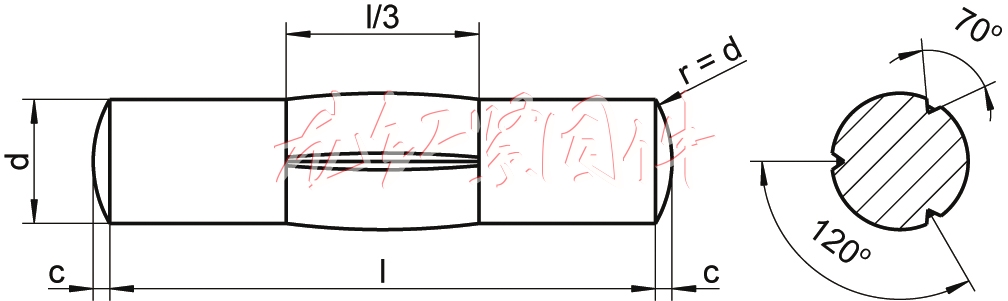

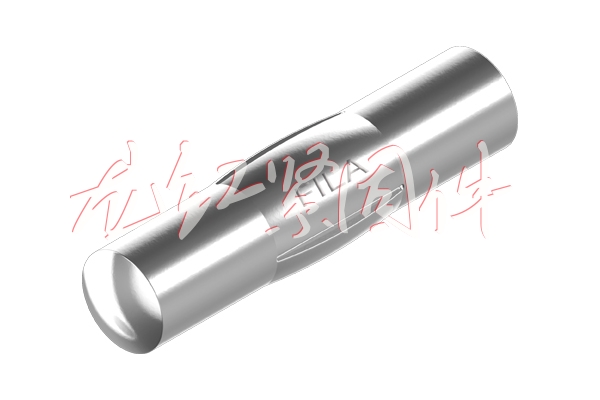

三分之一中間槽槽銷 ISO8743/GB13829.3-2004/DIN1475-1/DIN1475 Main Features Standard
Designation : Grooved pins ISO 8742 - DIN 1475
Usual standards : ISO 8742, DIN 1475
Equivalent standards : G6
Standard material : Steel or stainless steel
Comments : Special dimensions and materials on request. The standards ISO's lenght is total while the standards DIN's lenght is calculated on the edges.

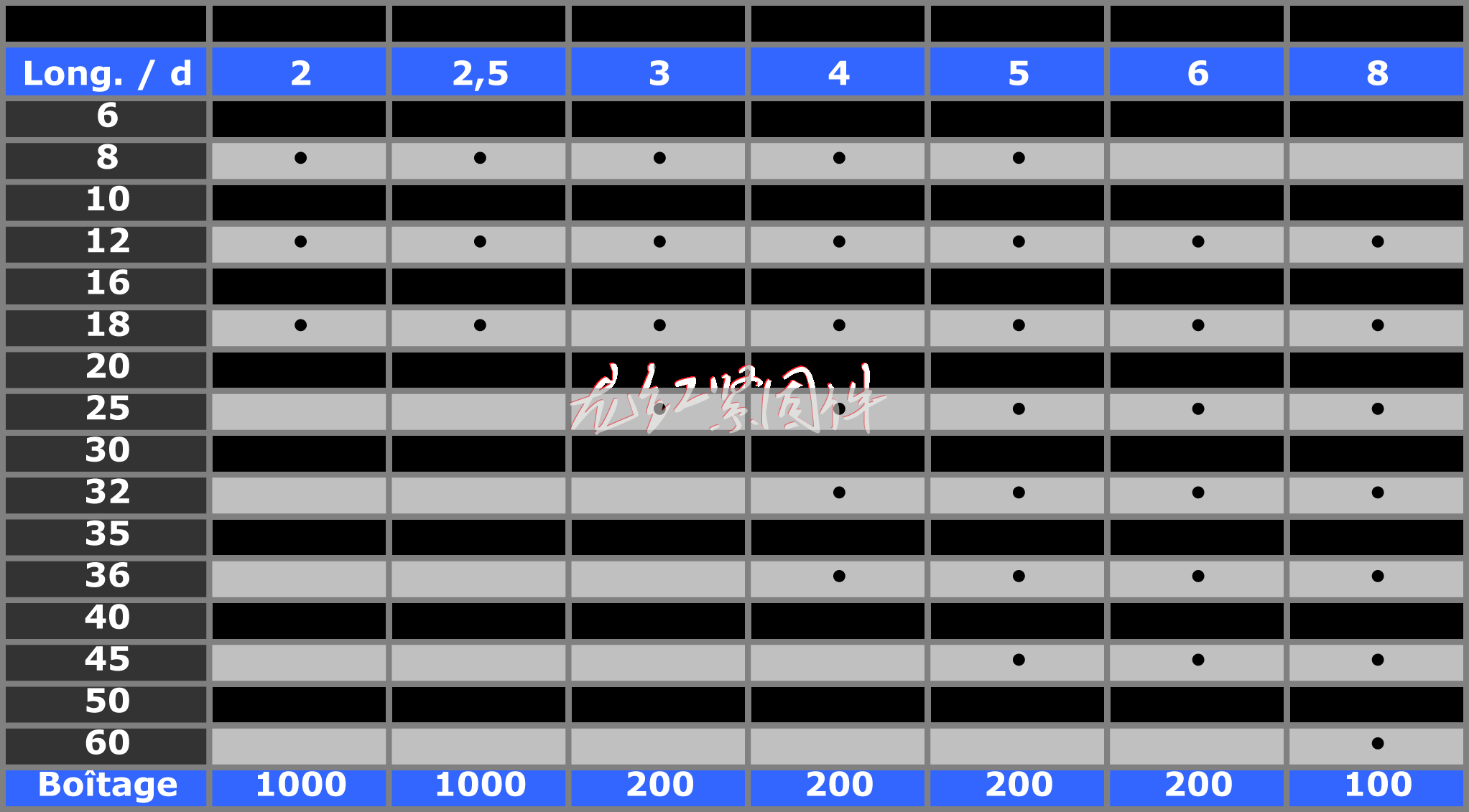

oupille Cannelée Bombée DIN 1475 Inox
DIN 1475 / ISO 8742
Inox A1
|
Material = 9SMnPb28K and stainless steel
|
||||||||||||
| D | 1,5 | 2 | 2,5 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 |
|
L e n g t h |
4* | 4* | ||||||||||
| 5* | 5* | |||||||||||
| 6 | 6 | 6 | 6 | 6 | ||||||||
| 8 | 8 | 8 | 8 | 8 | 8 | 8 | ||||||
| 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | |||||
| 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | |||||
| 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | ||||
| 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | ||||
| 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | ||||
| 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | ||||
| 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | ||
| 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | ||
| 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | ||
| 26 | 26 | 26 | 26 | 26 | 26 | 26 | 26 | 26 | 26 | 26 | ||
| 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | ||
| 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | ||
| 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | |||||
| 35 | 35 | 35 | 35 | 35 | 35 | 35 | 35 | |||||
| 36 | 36 | 36 | 36 | 36 | 36 | 36 | 36 | |||||
| 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | |||||
| 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | |||||
| 50 | 50 | 50 | 50 | 50 | 50 | 50 | ||||||
| 55 | 55 | 55 | 55 | 55 | 55 | |||||||
| 60 | 60 | 60 | 60 | 60 | 60 | |||||||
| 65 | 65 | 65 | 65 | 65 | ||||||||
| 70 | 70 | 70 | 70 | 70 | ||||||||
| 80 | 80 | 80 | 80 | |||||||||
| 90 | 90 | 90 |
90 |
|||||||||
* Only ISO 8740 or equivalent form.
