Long Hong®- 帶倒角及全長平行溝槽 ISO8740
副標題:帶倒角及全長平行溝槽 ISO8740
發布時間:2015-11-22 16:07:10 產品作者:LHGOOD 產品來源:非標壓鉚件
關鍵詞:
產品TGS:產品編碼:LH-000336 點擊數:
- 產品詳情 Product details
- 聯系我們 Contact us

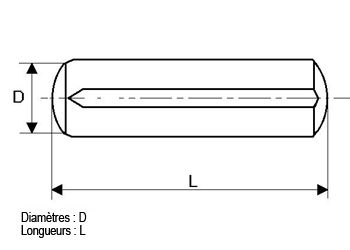

帶倒角及全長平行溝槽 ISO8740 Main Features Standard
Designation : Grooved pins ISO 8740 - DIN 1473
Usual standards : ISO 8740, DIN 1473
Equivalent standards : G7
Standard material : Steel or stainless steel
Comments : Special dimensions and materials on request. The standards ISO's lenght is total while the standards DIN's lenght is calculated on the edges.
Usual standards : ISO 8740, DIN 1473
Equivalent standards : G7
Standard material : Steel or stainless steel
Comments : Special dimensions and materials on request. The standards ISO's lenght is total while the standards DIN's lenght is calculated on the edges.
|
Material = 9SMstainless steel |
||||||||||||
| D | 1,5 | 2 | 2,5 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 |
|
L e n g t h |
4* | 4* | ||||||||||
| 5* | 5* | |||||||||||
| 6 | 6 | 6 | 6 | 6 | ||||||||
| 8 | 8 | 8 | 8 | 8 | 8 | 8 | ||||||
| 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | |||||
| 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | |||||
| 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | ||||
| 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | ||||
| 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | ||||
| 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | ||||
| 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | 22 | ||
| 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | ||
| 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | ||
| 26 | 26 | 26 | 26 | 26 | 26 | 26 | 26 | 26 | 26 | 26 | ||
| 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | ||
| 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | ||
| 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 | |||||
| 35 | 35 | 35 | 35 | 35 | 35 | 35 | 35 | |||||
| 36 | 36 | 36 | 36 | 36 | 36 | 36 | 36 | |||||
| 40 | 40 | 40 | 40 | 40 | 40 | 40 | 40 | |||||
| 45 | 45 | 45 | 45 | 45 | 45 | 45 | 45 | |||||
| 50 | 50 | 50 | 50 | 50 | 50 | 50 | ||||||
| 55 | 55 | 55 | 55 | 55 | 55 | |||||||
| 60 | 60 | 60 | 60 | 60 | 60 | |||||||
| 65 | 65 | 65 | 65 | 65 | ||||||||
| 70 | 70 | 70 | 70 | 70 | ||||||||
| 80 | 80 | 80 | 80 | |||||||||
| 90 | 90 | 90 |
90 |
|||||||||
* Only ISO 8740 or equivalent form.
