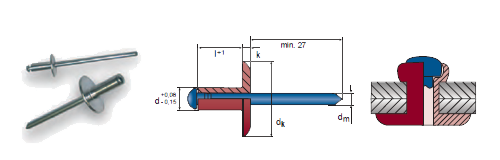

| d |
l +1 |
zakres |
dk |
k |
dm |
index |
szt. |
| 3,2 |
6,0 |
1,5-3,5 |
9,5
±0,3 |
1,2
+0,5 |
1,9 |
10.730.032.060 |
500 |
| 8,0 |
3,0-5,5 |
10.730.032.080 |
500 |
| 10,0 |
5,0-7,5 |
10.730.032.100 |
500 |
| EN AW - 5754 [AlMg3] |
 3,3 mm |
 580N |
 850N |
| 4,0 |
6,0 |
1,0-3,5 |
12,0
±0,3 |
1,5
±0,5 |
2,0 |
10.750.040.060 |
500 |
| 8,0 |
3,0-5,5 |
10.750.040.080 |
500 |
| 10,0 |
5,0-7,0 |
10.750.040.100 |
500 |
| 12,0 |
6,5-9,0 |
10.750.040.120 |
500 |
| 16,0 |
8,5-12,5 |
10.750.040.160 |
500 |
| 18,0 |
12,0-14,5 |
10.750.040.180 |
500 |
| 20,0 |
14,0-16,0 |
10.750.040.200 |
500 |
| EN AW - 5754 [AlMg3] |
4,1 mm |
1120N |
1900N |
| 4,8 |
8,0 |
2,0-5,0 |
16,0
±0,3 |
1,8
±0,5 |
2,7 |
10.770.048.080 |
500 |
| 10,0 |
4,0-6,5 |
10.770.048.100 |
500 |
| 12,0 |
6,0-8,0 |
10.770.048.120 |
500 |
| 16,0 |
7,5-12,0 |
10.770.048.0160 |
500 |
| 18,0 |
11,5-13,5 |
10.770.048.180 |
500 |
| 20,0 |
12,0-15,5 |
10.770.048.200 |
250 |
| 25,0 |
15,0-20,5 |
10.770.048.250 |
250 |
| 30,0 |
20,0-25,0 |
10.770.048.300 |
250 |
| EN AW - 5754 [AlMg3] |
4,9 mm |
1480N |
2200N |
|
|
| d |
l +1 |
zakres |
dk |
k |
dm |
index |
szt. |
| 5,0 |
8,0 |
2,0-5,0 |
11,0
±0,3 |
1,5
±0,5 |
2,7 |
10.740.050.080 |
500 |
| 10,0 |
4,0-6,5 |
10.740.050.100 |
500 |
| 12,0 |
6,0-8,0 |
10.740.050.120 |
500 |
| 14,0 |
7,5-10,0 |
10.740.050.140 |
500 |
| 16,0 |
8,0-12,0 |
10.740.050.160 |
500 |
| 18,0 |
8,0-12,0 |
10.740.050.180 |
500 |
| 20,0 |
12,0-15,5 |
10.740.050.200 |
500 |
| 25,0 |
15,0-20,5 |
10.740.050.250 |
500 |
| 30,0 |
20,0-25,0 |
10.740.050.300 |
500 |
| EN AW-5754 [AlMg3] |
5,1 mm |
1650N |
2500N |
| 5,0 |
8,0 |
2,0-5,0 |
14,0
±0,3 |
1,5
±0,5 |
2,7 |
10.760.050.080 |
500 |
| 10,0 |
4,0-6,5 |
10.760.050.100 |
500 |
| 12,0 |
6,0-8,0 |
10.760.050.120 |
500 |
| 14,0 |
7,5-10,0 |
10.760.050.140 |
500 |
| 16,0 |
8,0-12,0 |
10.760.050.160 |
500 |
| 18,0 |
11,5-13,5 |
10.760.050.180 |
500 |
| 20,0 |
12,0-15,5 |
10.760.050.200 |
500 |
| 25,0 |
15,0-20,5 |
10.760.050.250 |
250 |
| 30,0 |
20,0-25,0 |
10.760.050.300 |
250 |
| EN AW-5754 [AlMg3] |
5,1 mm |
1650N |
2500N |
| 5,0 |
10,0 |
2,0-6,5 |
16,0
±0,3 |
1,8
+0,5 |
2,7 |
10.770.050.100 |
500 |
| 16,0 |
6,0-12,0 |
10.770.050.160 |
500 |
| 20,0 |
11,5-15,5 |
10.770.050.200 |
250 |
| 25,0 |
15,0-20,5 |
10.770.050.250 |
250 |
| 33,0 |
20,0-28,0 |
10.770.050.330 |
250 |
| EN AW-5754 [AlMg3] |
5,1 mm |
1650N |
2500N |
| 6,0 |
10,0 |
3,0-5,5 |
16,0
±0,3 |
1,8
+0,5 |
3,2 |
10.750.060.100 |
250 |
| 16,0 |
7,0-11,0 |
10.750.060.160 |
250 |
| 20,0 |
11,0-15,0 |
10.750.060.200 |
250 |
| EN AW - 5754 [AlMg3] |
6,1 mm |
2650N |
3500N |
|
